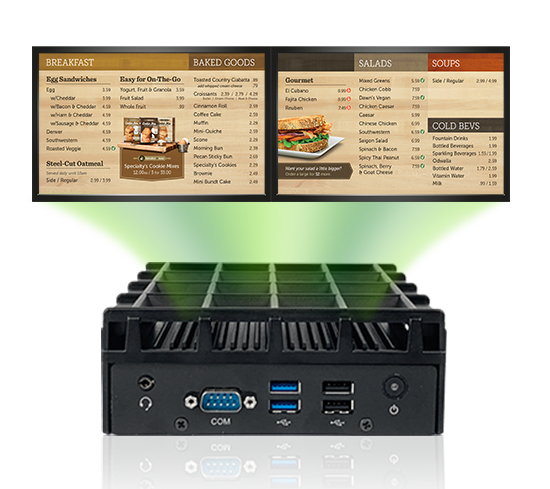

MA1352GL Multi Screen Appliance

Power Multiple Screens for Digital Signage Arrays

The DT Research MA1352GL Multi Screen Appliance features the powerful and energy-efficient Intel® Pentium® processor and integrates 3 video-out connectors for high-quality and optimal display experience. Combined with the industry-leading WebDT Content Manager and Menu Board Editor software, one MA1352GL is capable of driving content on up to 3 screens while communicating with the server for updates for digital menu board and advertising applications.

Features

  • Intel® Pentium® CPU, 4 cores
  • Small, robust and fanless design
  • Microsoft® Windows® 10 IoT Enterprise operating system
  • Drives up to 3 screens
  • Support for multiple zones of content
  • Content flexibility for many multimedia file formats
    See the supported media
  • Real-time or scheduled content playback
  • Flexible screen layout options with multiple zones and layers
  • Automatic content download recovery

Specifications

System

  • CPU

    Intel® Pentium®, 4 cores

  • RAM

    8GB

  • Storage

    256GB

  • Operating System

    Microsoft® Windows® 10 IoT Enterprise operating system

  • Max. Display Connection

    3 screens

  • Display Resolution

    3840 x 2160 @ 60Hz (x1); 1920x1080 @ 60Hz (x3)

  • Video Performance①

    1080P x 2 @12mbps/30fps; 2160P x 1 @60mbps/30fps

  • Network Interface

    10/ 100/ 1000MB BaseT LAN; optional Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band

I/O Ports

  • Video-out

    1 HDMI (1.4)
    1 HDMI (2.0)
    1 DisplayPort (1.2)

  • Audio Jack

    1

  • USB 2.0

    2

  • USB 3.0

    2

  • DC-in

    1

  • Ethernet

    RJ45 connector for Ethernet x 1

Mechanical and Environmental

  • AC/DC Adapter

    Input: 100-240V AC; Output: 19V DC

  • Fan/ Fanless

    Fanless

  • Enclosure

    Aluminum + steel

  • Dimensions (H x W x D)

    2.16 x 5.82 x 6.5 in/ 55 x 148 x 165.1 mm

  • Weight

    1.94 lbs/ 880 g

  • Temperature

    Operation: 0°C – 40°C; Storage: -20°C – 60°C

  • Humidity

    0% – 90% non-condensing

MAJOR OPTIONS SPECS

  • HD Video Capture USB Stick

    Video capture USB dongle with S-video/ composite inputs
    * HDCP content (High-Bandwidth Digital Content Protection) not supported

* Specs subject to change without notice.
①Please note that actual performance will still depend on different media content and profile.

Product Pictures

Image description

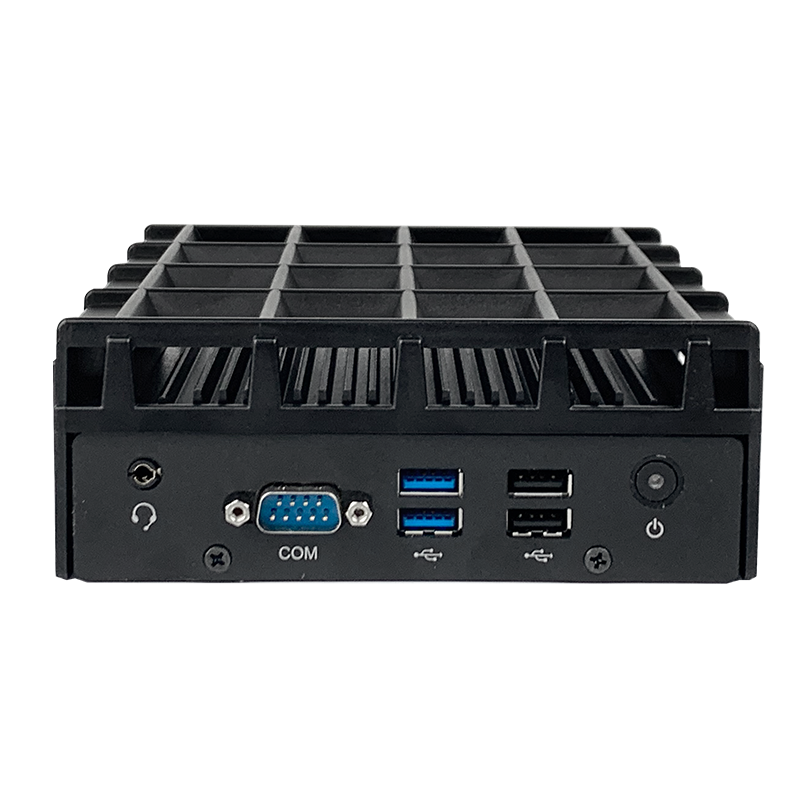

MA1352GL
Image description

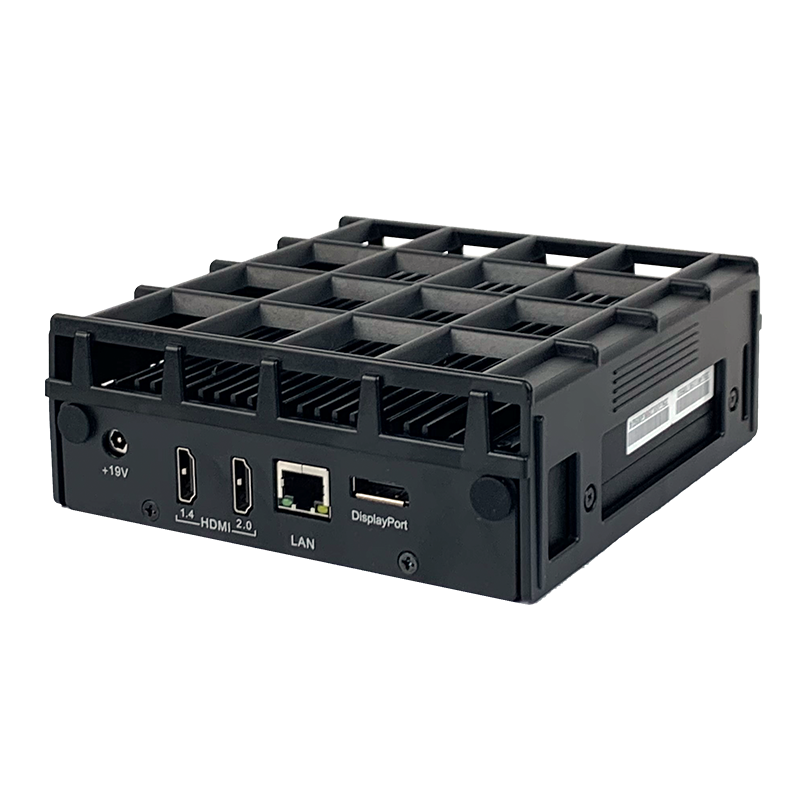

MA1352GL
Image description

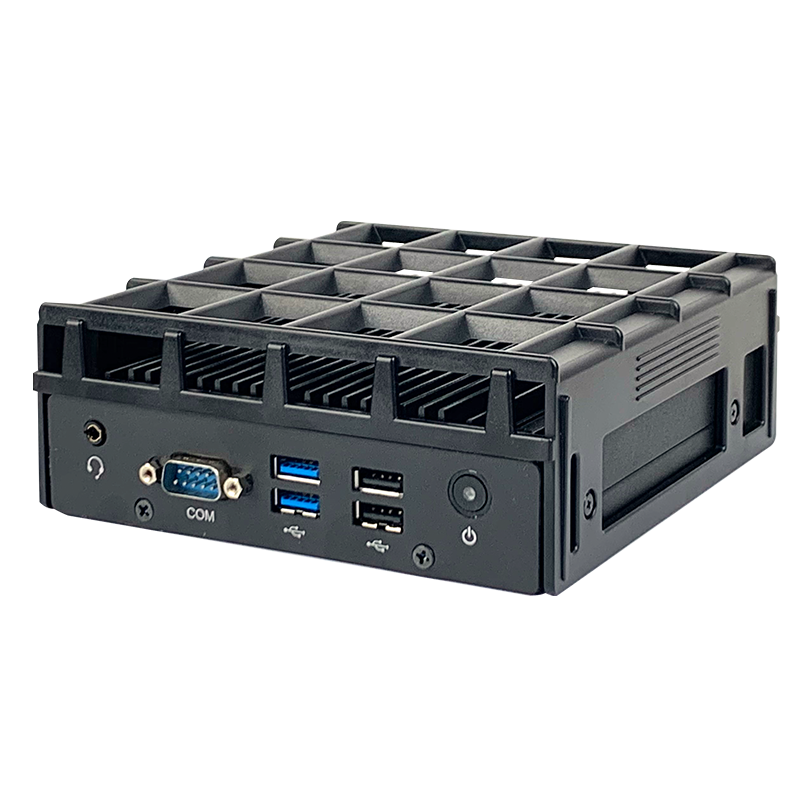

MA1352GL
Image description
MA1352GL
