MA1393CS Multi Screen Appliance
Power Multiple Screens for Digital Signage Arrays

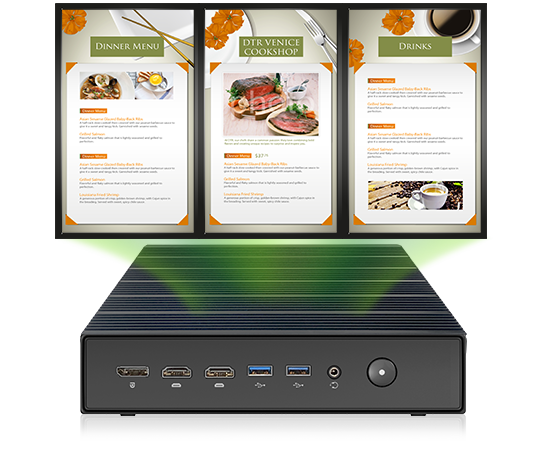

The DT Research MA1393CS Multi Screen Appliance features the powerful and energy-efficient Intel® Core™ i processor and integrates 3 video-out connectors for high-quality and optimal display experience. Combined with the industry-leading WebDT Content Manager and Menu Board Editor software, one MA1393CS is capable of driving content on up to 3 screens while communicating with the server for updates for digital menu board and advertising applications.
Features
- Intel® Core™ i5/ i7 processor
- Slim, robust and fanless design
- Microsoft® Windows® 10 IoT Enterprise operating system
- Drives up to 3 screens
- Support for multiple zones of content
- Content flexibility for many multimedia file formats
See the supported media - Real-time or scheduled content playback
- Flexible screen layout options with multiple zones and layers
- Automatic content download recovery
Major Option
- Internal 802.11 wireless adapter with dual antennas
Specifications
System
-
CPU
Intel® 10th Generation Core™ i5, 6 cores
Intel® 10th Generation Core™ i7, 8 cores -
RAM
16GB
-
Storage
512GB
-
Operating System
Microsoft® Windows® 10 IoT Enterprise operating system
-
Max. Display Connection
3 screens
-
Display Resolution
3840 x 2160 @ 60Hz (x1), 1920 x 1080 @ 60Hz (x3), 3840 x 2160 @ 30Hz (x3)
-
Video Performance①
1080P x 3 @ 12mbps/30fps; 2160P x 2 @ 60mbps/30fps
-
Network Interface
10/ 100/ 1000MB BaseT LAN; Wi-Fi 802.11ax, 2.4GHz/ 5GHz dual band (optional)
I/O Ports
-
Video-out
2 HDMI (1.4), 1 DisplayPort (1.2)
-
Audio Jack
3.5mm phone jack x 1
-
USB 3.0
4
-
COM
4
-
DC-in
1
-
Ethernet
RJ45 connector for Ethernet x 2
Mechanical and Environmental
-
AC/DC Adapter
Input: 100 – 240 V AC; Output: 19V DC
-
Fan/ Fanless
Fan
-
Enclosure
Aluminum + steel
-
Dimensions (H x W x D)
1.7 x 8 x 9.1 in/ 43.5 x 202 x 232 mm
-
Weight
4.6 lb/ 2.1 kg
-
Temperature
Operation: -10°C to 50°C (14°F to 122°F); Storage: -20°C to 60°C (-4°F to 140°F)
-
Humidity
0% – 90% non-condensing
①Please note that actual performance will still depend on different media content and profile.

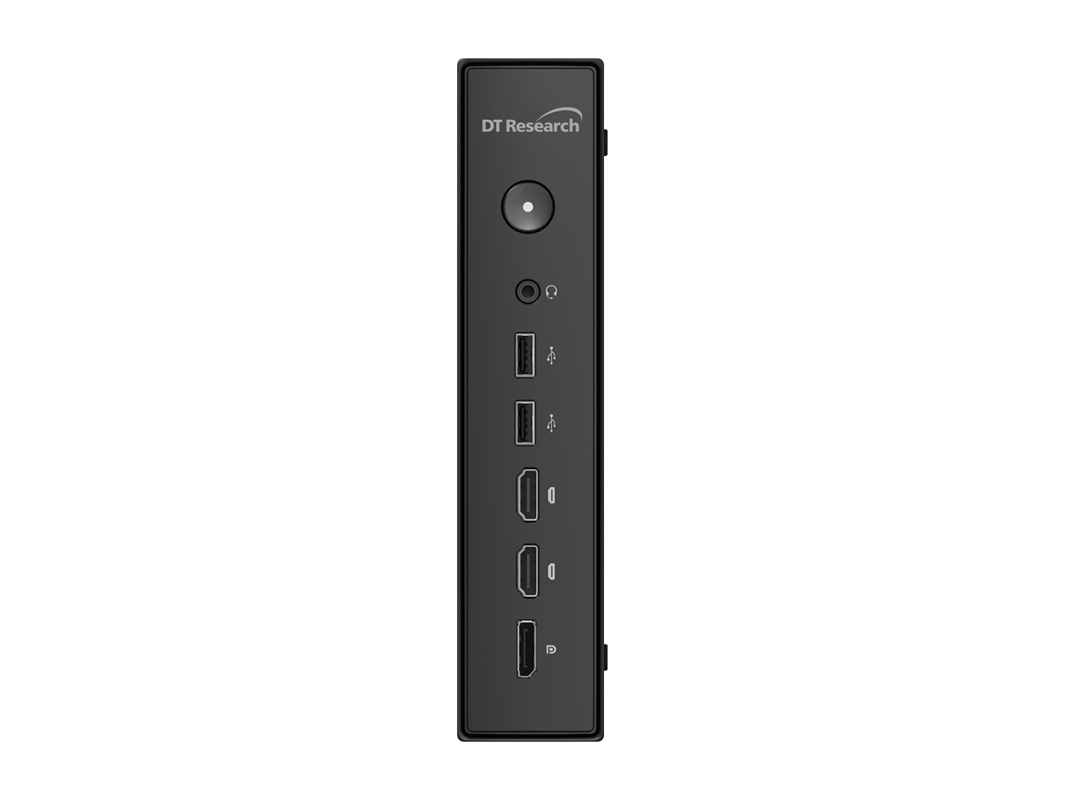

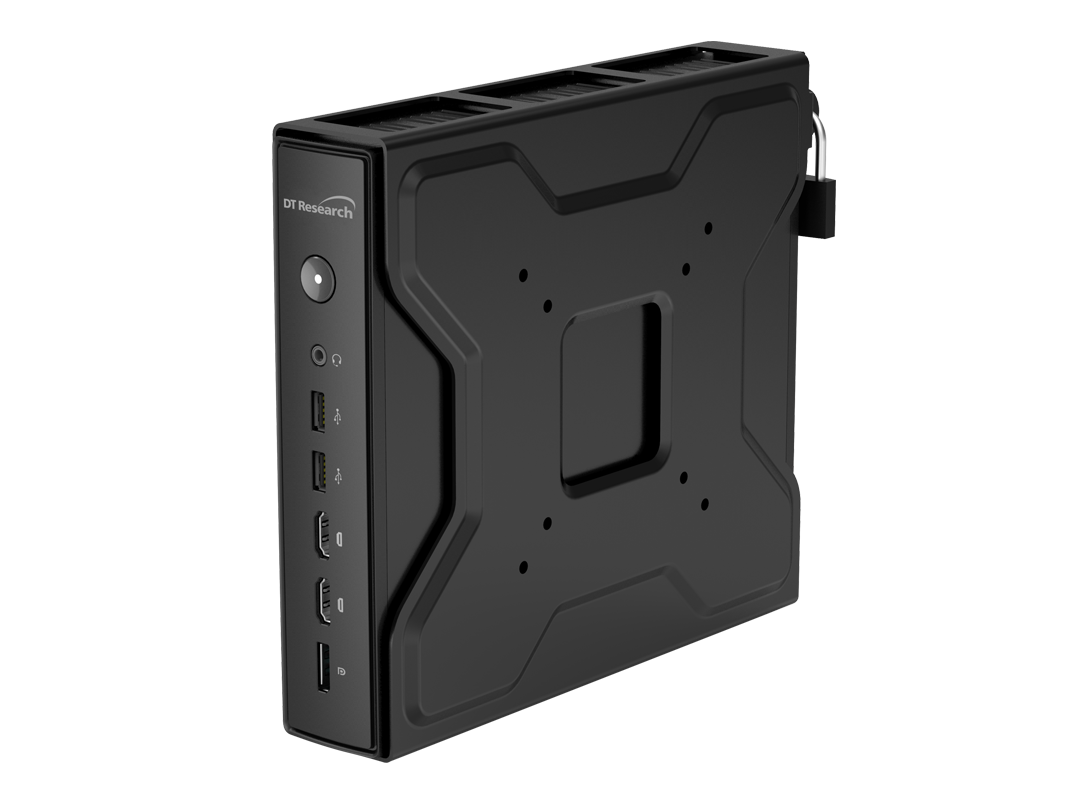

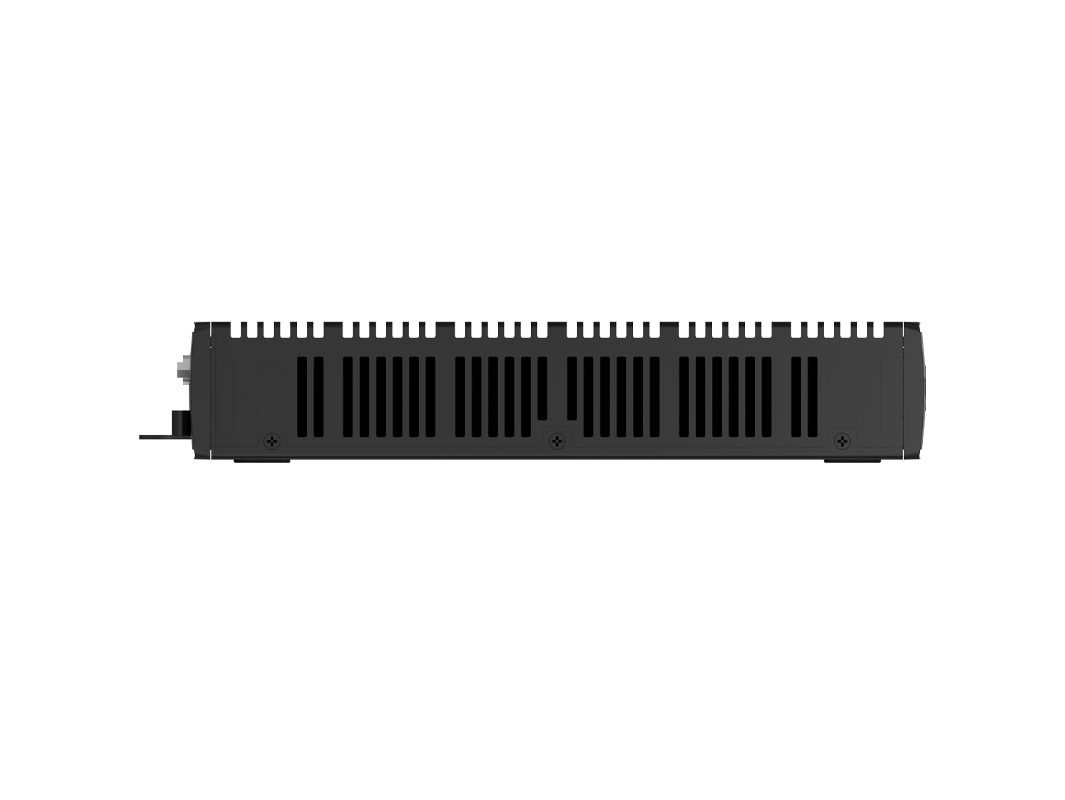

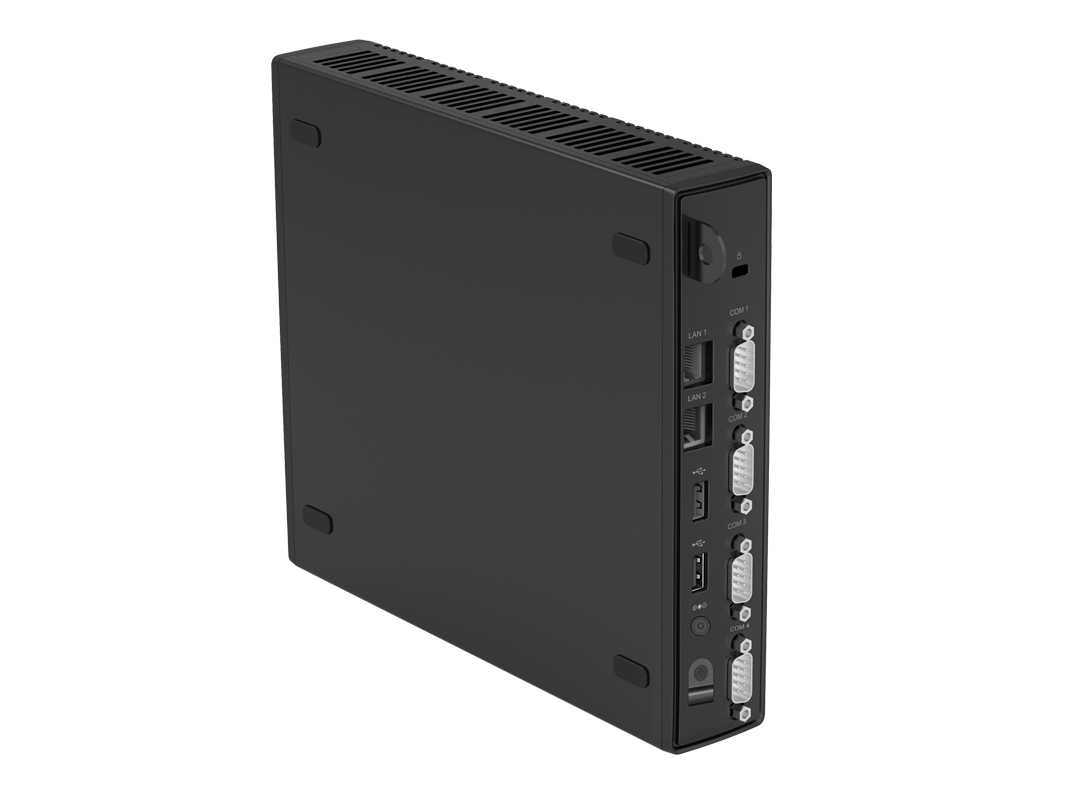

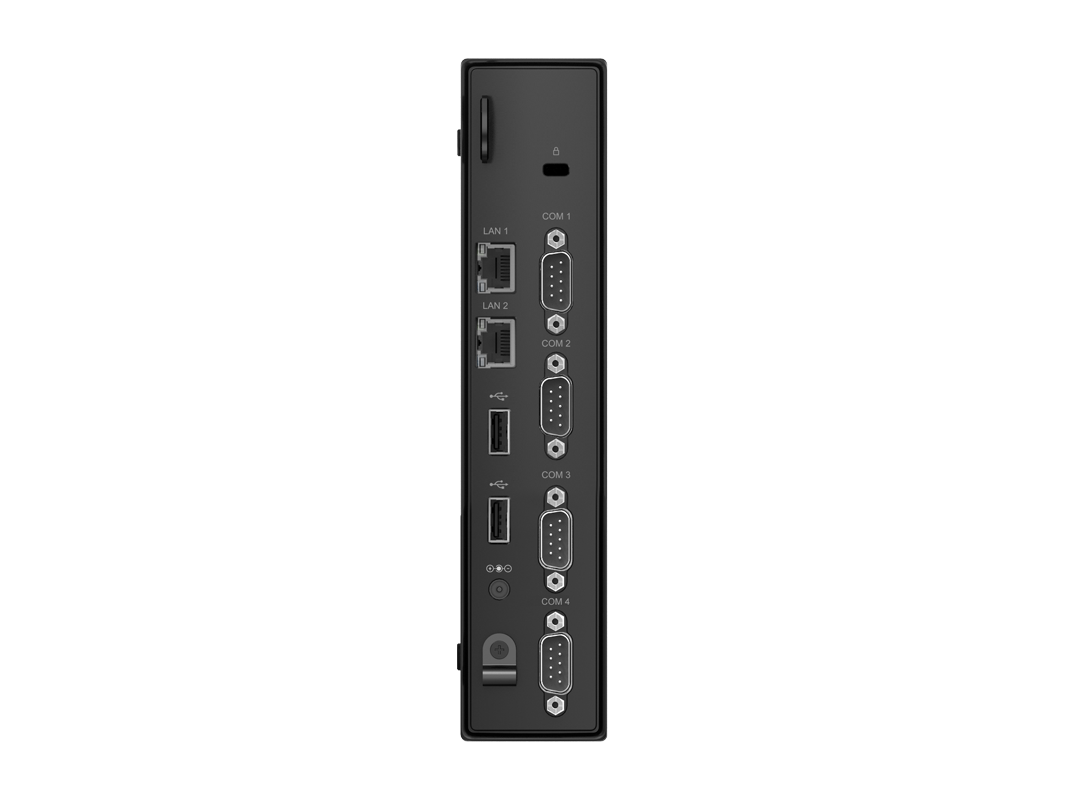

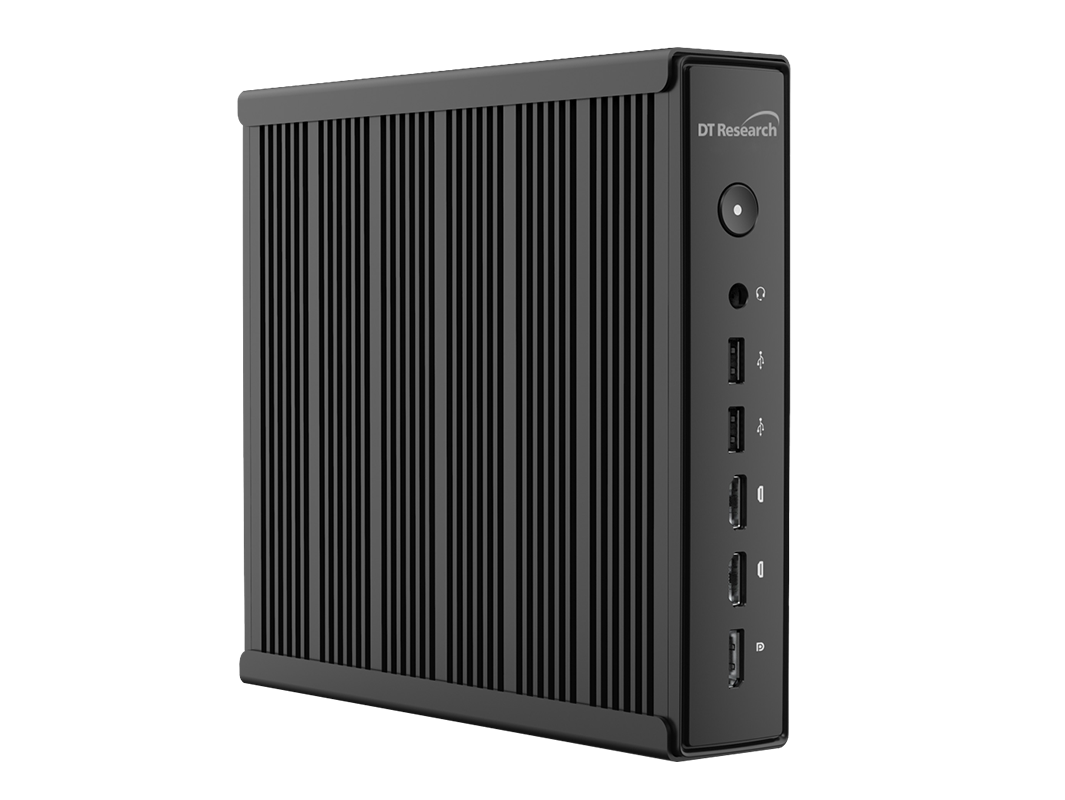

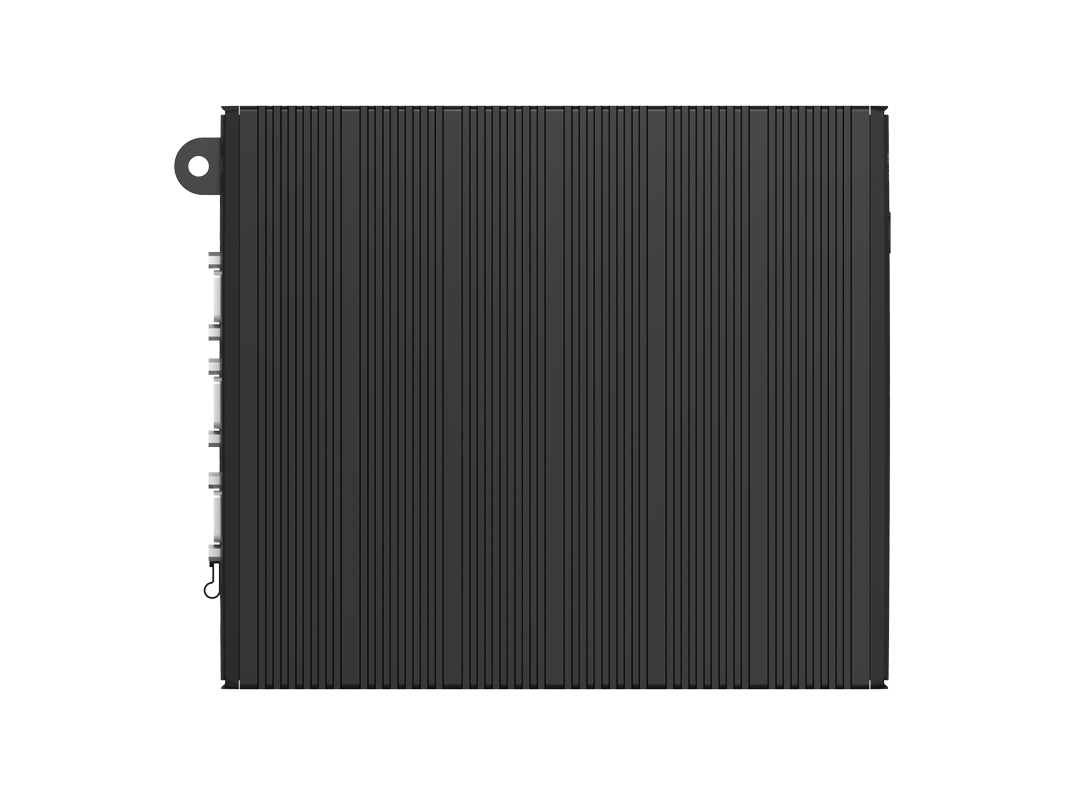

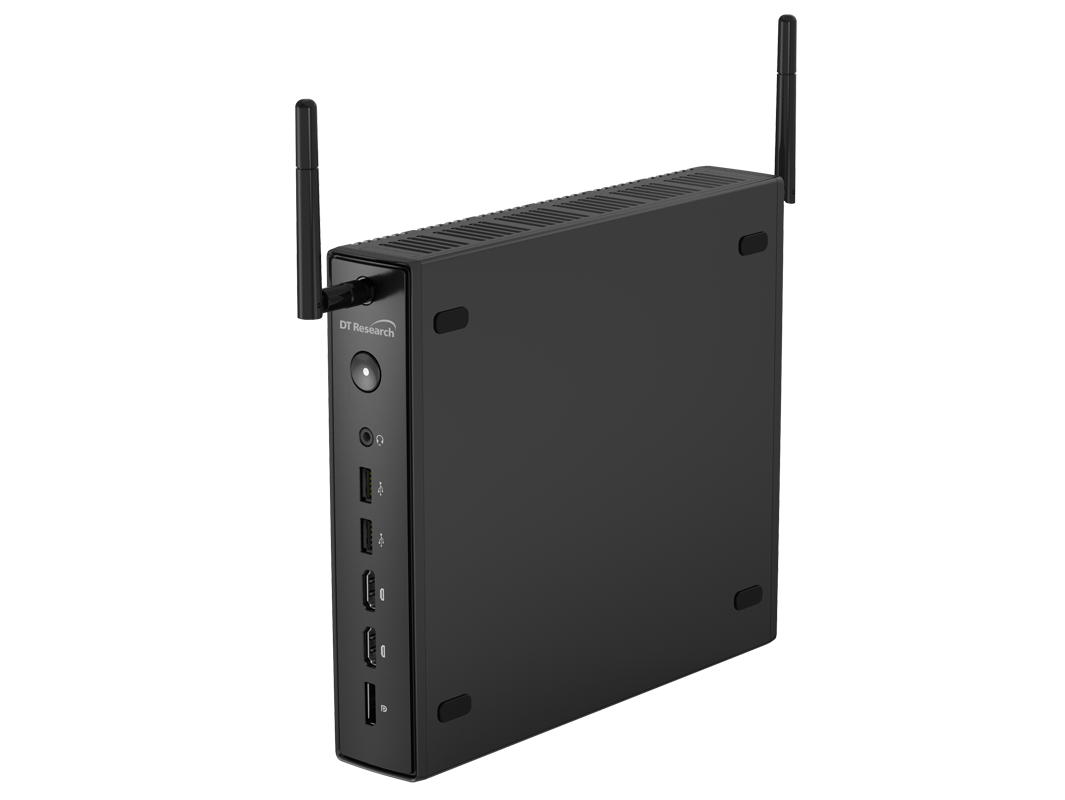

Product Pictures
