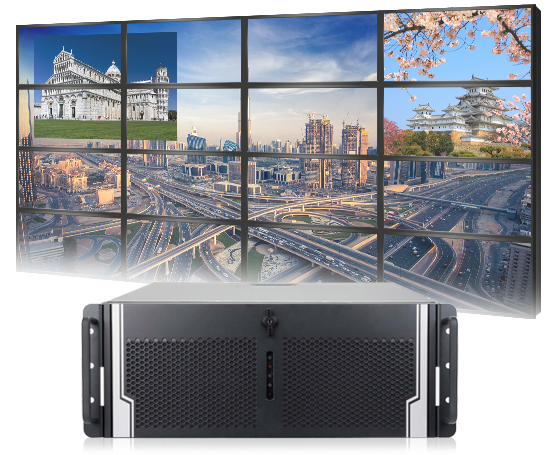

MS2800Ns Multi Screen Appliance
Power Multiple Screens for Digital Signage Arrays
The DT Research MS2800Ns Multi Screen Appliance powers multiple screens for digital signage applications. Featuring the powerful and energy-efficient 10-core Intel® X-Series Core™ i9 processor, the MS2800Ns provides up to 16 video-out connectors for high-quality and optimal display experience. Combined with the industry-leading WebDT Content Manager software, one MS2800Ns is capable of driving dynamic content on up to 16 screens, while communicating with the server for continuous updates. These screens can be configured into one large video wall or they can be spread out to several separate areas. Each screen has the ability to deliver up to 1920 x 1080 (Full-HD) resolution.
Features
- Drives up to 16 screens; Full HD content supported on each screen
- Support for multiple zones of content for each display wall
- Content flexibility for many multimedia file formats; stretched across multiple screens or played on a single screen
- Support for numerous media formats (e.g., images, videos, Flash, URL, RSS, PowerPoint)
See the supported media
Specifications
System
-
CPU
Intel® X-Series Core™ i9, 10 cores
-
RAM
16GB
-
Storage
512GB flash
-
Operating System
Microsoft® Windows® 10 IoT Enterprise operating system
-
Network Interface
10/ 100/ 1000Mb BaseT LAN
-
Max. Display Connection
16 screens
-
Display Resolution
DisplayPort (1.4) 4096x2160 @ 60Hz (x16)
-
Video Performance①
1080P(FHD) x 16≈ @12mbps/30fps; 2160P(4K) x 6≈ @60mbps/30fps
I/O Ports
-
Display Connectors
16 mini-DisplayPort(1.4) outputs②
-
eSATA Port
eSATA 6.0 Gb/s port x 2
-
Audio Jack
3.5mm phone jack x 6/ Digital output x 1
-
USB 2.0
2
-
USB 3.0
10
-
Ethernet
RJ45 connector for Ethernet x 1
Mechanical and Environmental
-
AC/DC Adapter
800W ATX
-
Enclosure
Aluminum + steel
-
Dimensions (H x W x D)
7.9 x 16.9 x 21 in/ 176 x 430 x 546 mm
-
Weight
36.2 lbs/ 16.42 kg
-
Temperature
Operation: 0°C – 40°C; Storage: -20°C – 60°C
-
Humidity
5% – 95% non-condensing
MAJOR OPTIONS SPECS
-
HD Video Capture Box
HDMI input with HDCP support, and connect to Signage Players via USB 2.0 port
-
HDMI Video Capture Card
Video capture card with HDMI, component, composite and S-video inputs.
* HDCP content (High-Bandwidth Digital Content Protection) not supported. -
HDMI Video Capture Card
Video capture PCI-E card with HDMI 1080p, component, S-video and composite inputs.
* HDCP content (High-Bandwidth Digital Content Protection) not supported.
** Case design may differ in different markets/countries.
① Please note that actual performance will still depend on different media content and profile.
② The mini-DP to DP/ DVI/ HDMI adapters are included.

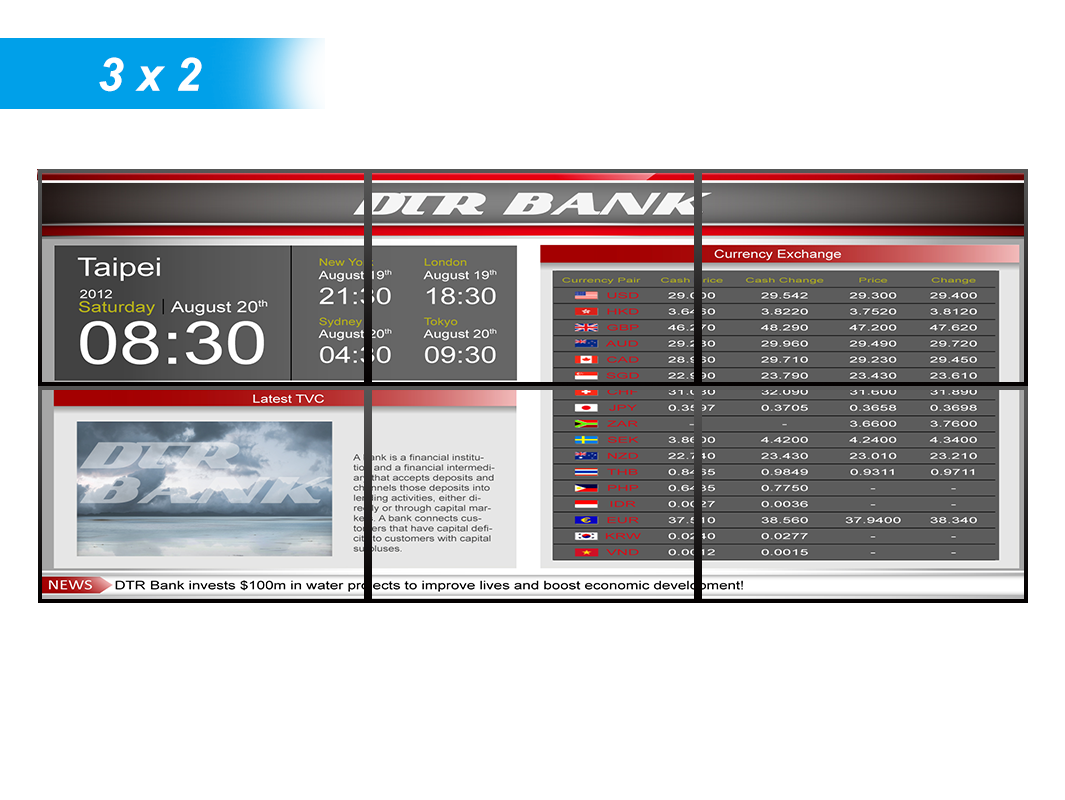

Standard Display Arrangement

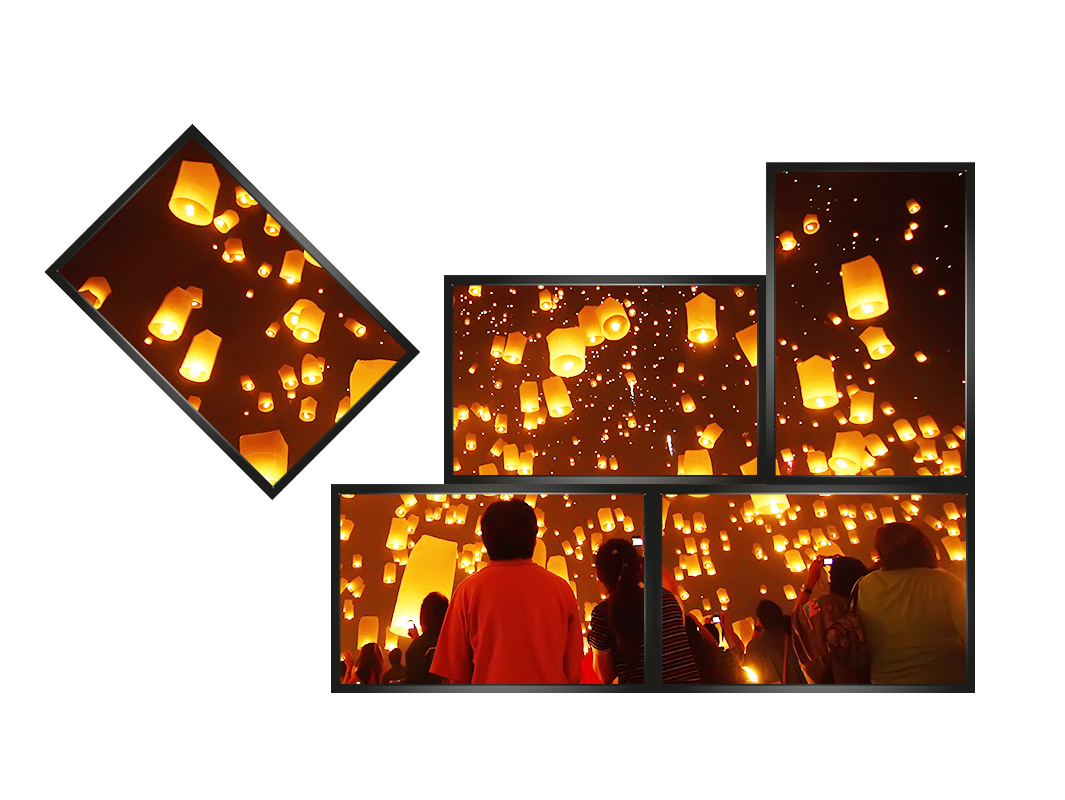

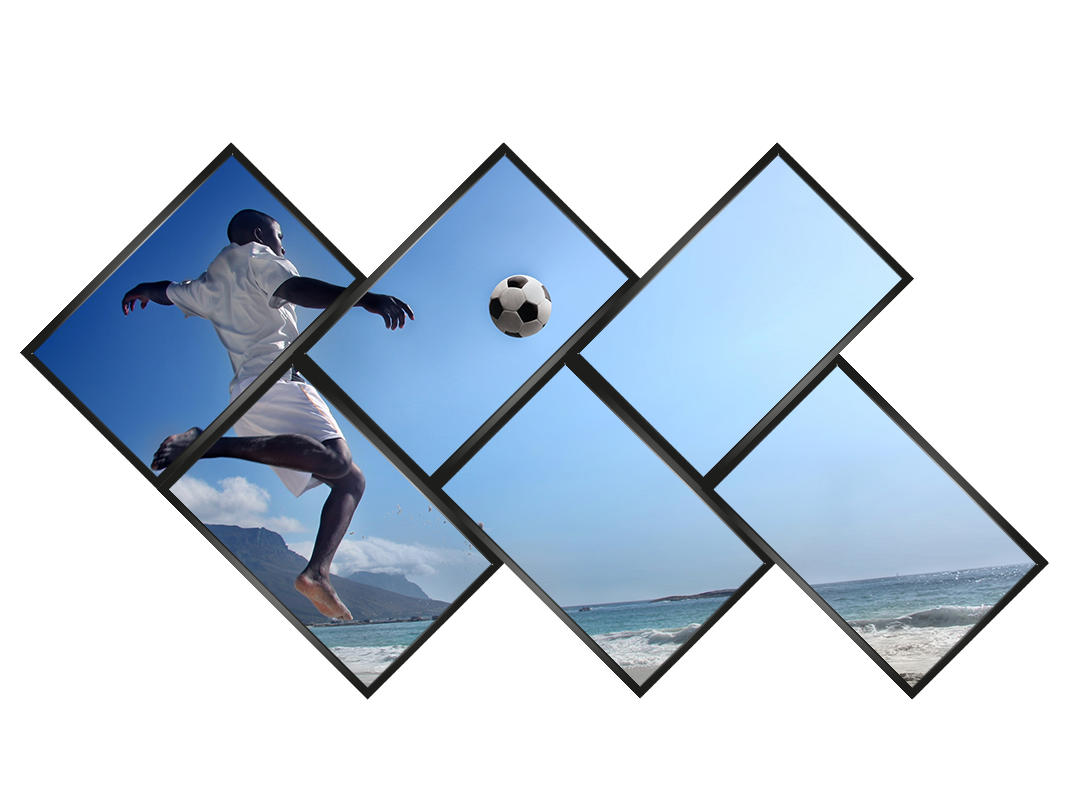

Flexible Screen Layout (customization by request)

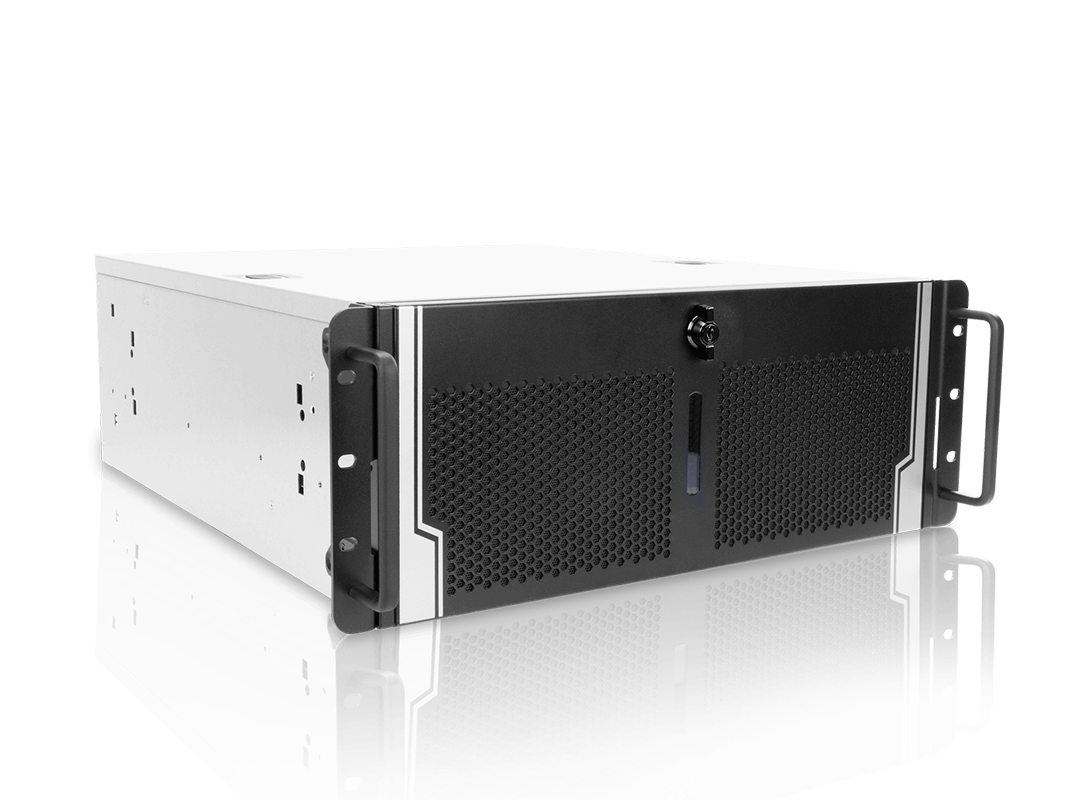

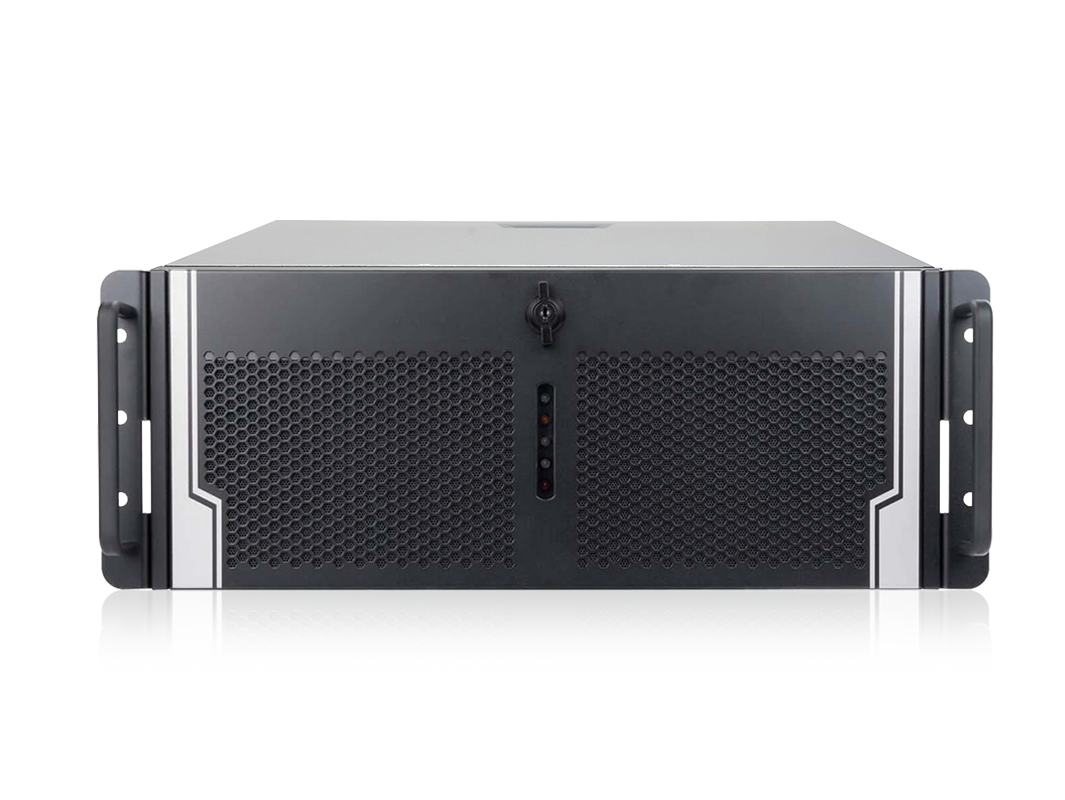

Product Pictures
