MS600Ns
Power Multiple Screens for Digital Signage Arrays
AVAILABLE OUTSIDE THE U.S.
The DT Research MS600Ns Multi Screen Appliance powers multiple screens for digital signage applications. Featuring the powerful and energy-efficient Intel® Core™ i7 processor, the MS600Ns includes the latest graphics technology with 4 video-out connectors for high-quality and optimal display experience. Combined with the industry-leading WebDT Content Manager software, one MS600Ns is capable of driving dynamic content on up to 4 screens, while communicating with the server for continuous updates. These screens can be configured into one large video wall or they can be spread out to several separate areas. Each screen has the ability to deliver up to 1920 x 1080 (Full-HD) resolution.
Features
- Drives up to 4 screens; Full-HD content supported on each screen
- Support for multiple zones of content for each display wall
- Content flexibility for many multimedia file formats; stretched across multiple screens or played on a single screen
- Support for numerous media formats (e.g., images, videos, Flash, URL, RSS, PowerPoint)
See the supported media
Specifications
System
-
CPU
Intel® Core™ i7, 6-8 cores CPU
-
RAM
16GB
-
Storage
512GB flash
-
Operating System
Microsoft® Windows® 10 IoT Enterprise operating system
-
Network Interface
10/ 100/ 1000Mb BaseT LAN
-
Max. Display Connection
4 screens
-
Display Resolution
DisplayPort (1.4) 4096 x 2160 @ 60Hz (x4)
-
Video Performance①
1080P (FHD) x 8≈@12mbps/30fps; 2160P (4K) x 2~4@60mbps/30fps
I/O Ports
-
Display Connectors
4 mini-DisplayPort(1.4) outputs②
-
Audio Jack
1
-
USB 2.0
2
-
USB 3.0
4
-
DC-in
1
-
Ethernet
RJ45 connector for Ethernet x 1
-
Front Controls
Power on/off; system reset; 2 USB ports; 1 Audio out; 1 Microphone in
-
Front Indicators
Power and HDD
-
Optional Ports
WLAN (optional via internal PCI-Express slot or external USB)
Mechanical and Environmental
-
AC/DC Adapter
300W ATX
-
Fan/ Fanless
Fan
-
Enclosure
Plastic, aluminum + steel
-
Dimensions (H x W x D)
4.1 x 17.3 x 13.3 in/ 105 x 440 x 340 mm
-
Weight
13.2 lbs/ 6 kg
-
Temperature
Operation: 0°C – 40°C; Storage: -20°C – 60°C
-
Humidity
5% – 95% non-condensing
MAJOR OPTIONS SPECS
-
HD Video Capture Box
HDMI input with HDCP support, and connect to Signage Players via USB 2.0 port
-
HDMI Video Capture Card
Video capture card with HDMI, component, composite and S-video inputs.
* HDCP content (High-Bandwidth Digital Content Protection) not supported.
** Case design may differ in different markets/countries.
① Please note that actual performance will still depend on different media content and profile.
② The mini-DP to DP/ DVI/ HDMI adapters are included.
Standard Display Arrangement
Flexible Screen Layout (customization by request)

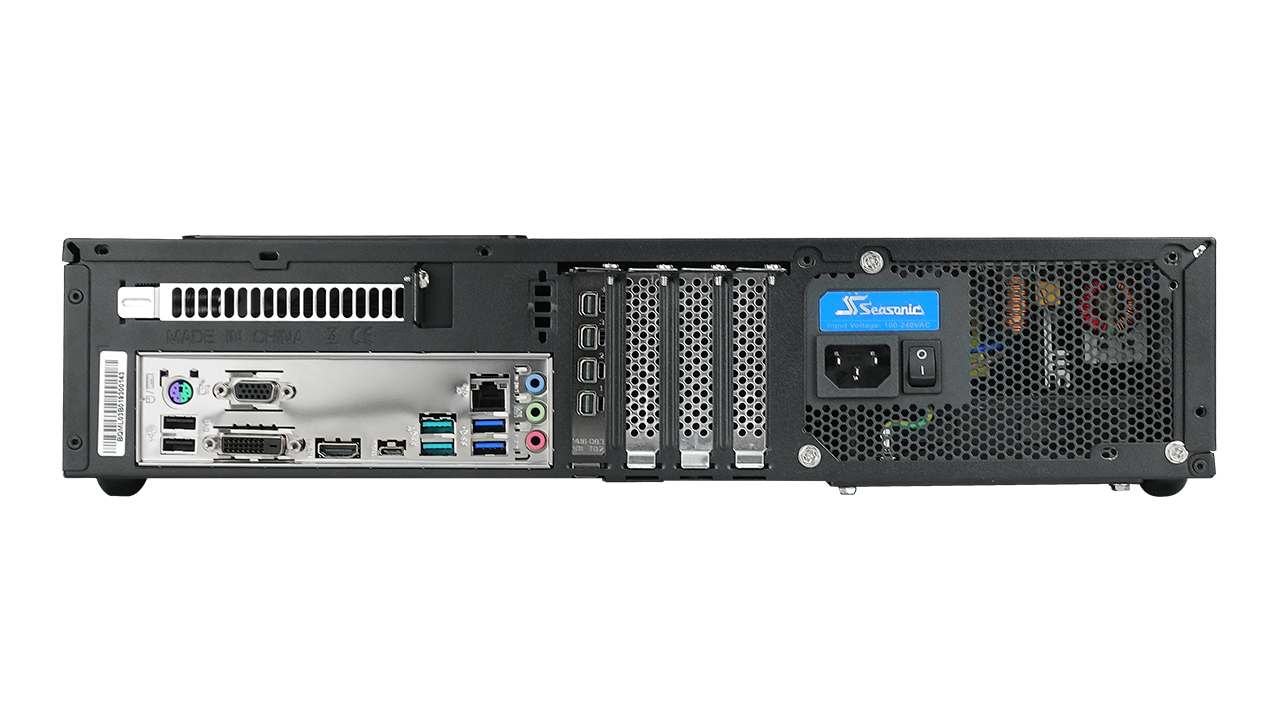

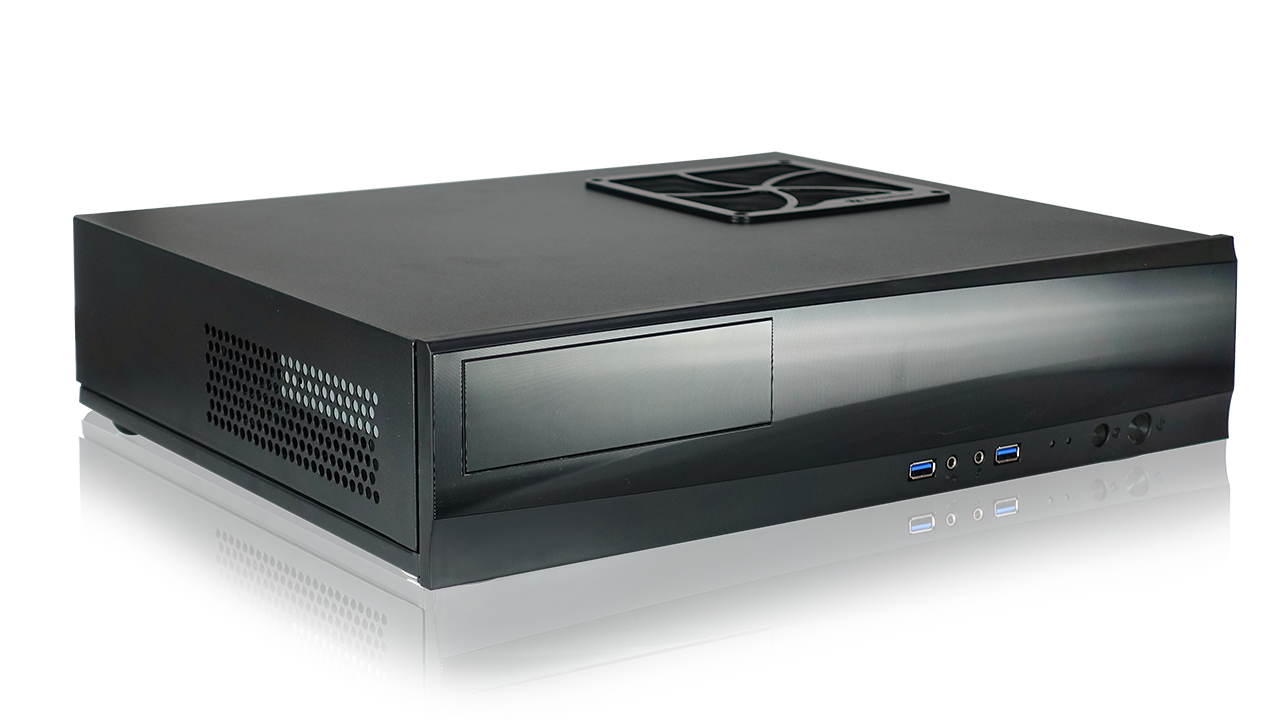

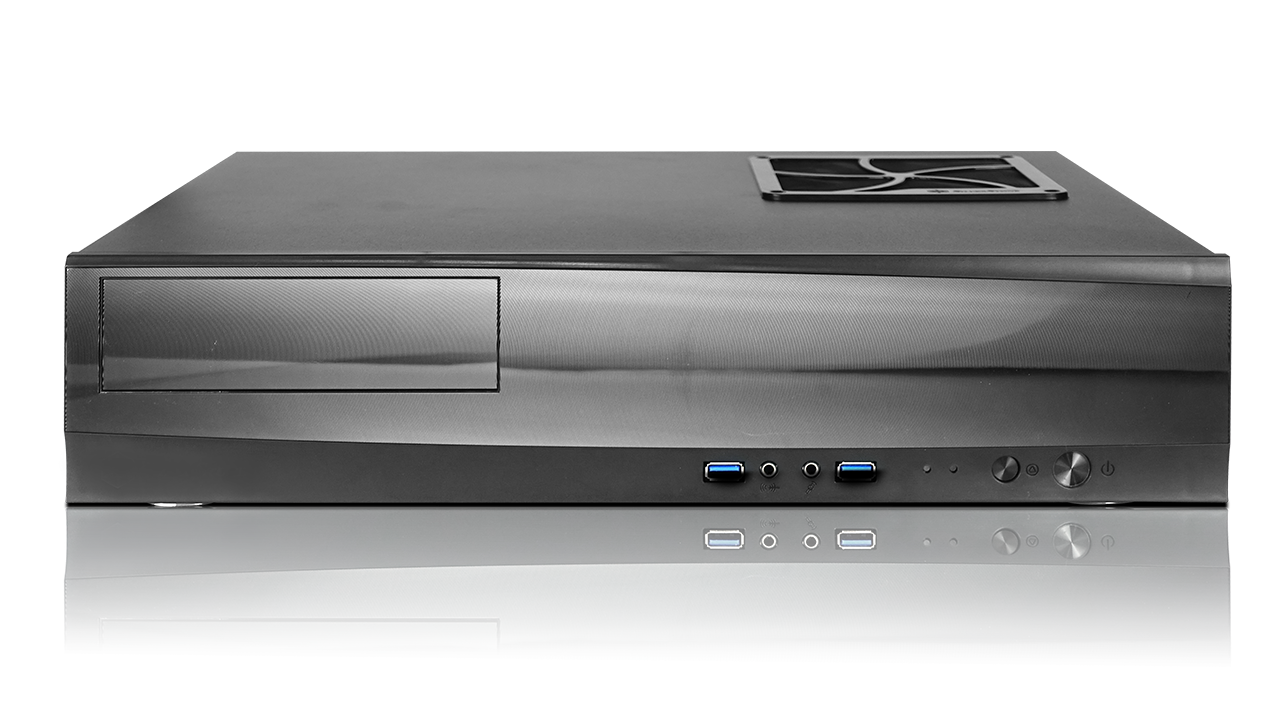

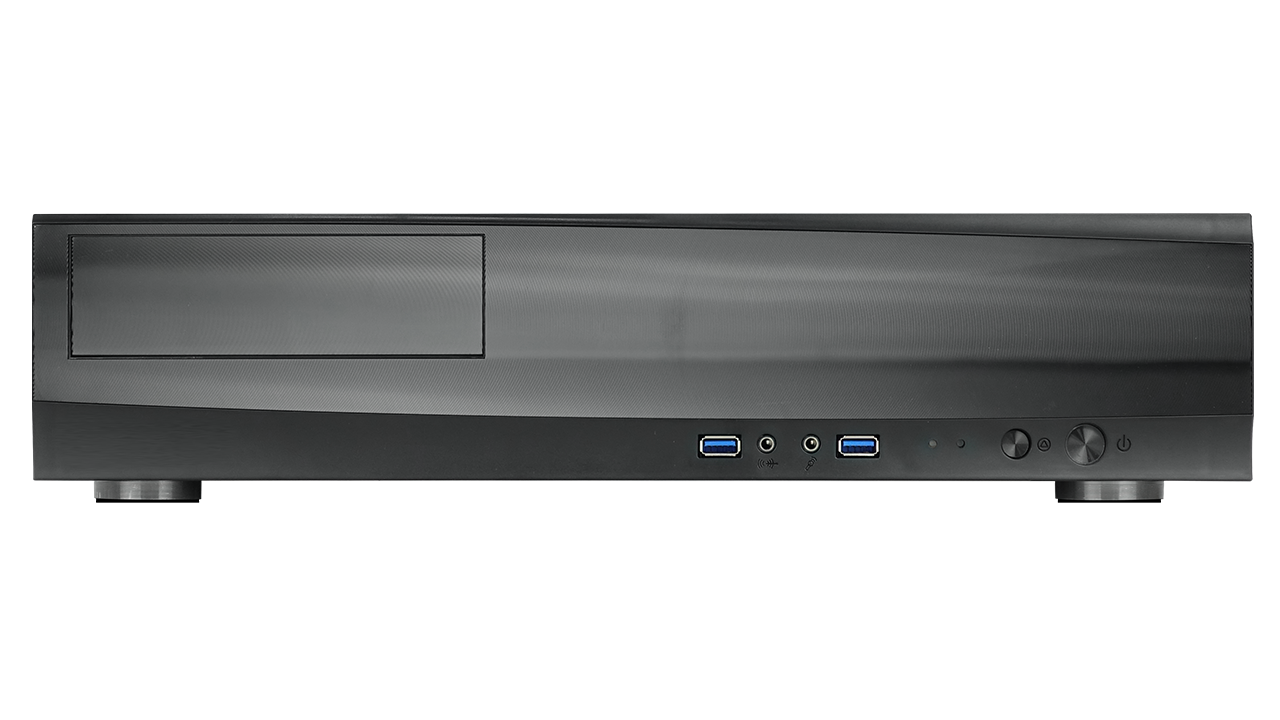

Product Pictures
