SA166CR Signage Appliance

Robust, Compact and Energy-efficient Digital Signage

The DT Research SA166CR Signage Appliance features an energy-efficient Intel® Atom™ quad-core processor and Windows® operating system, as well as integrates video-out connectors for high definition display experience. Combined with the industry-leading WebDT Content Manager and Menu Board Editor software, one SA166CR is capable of driving content on the screen while communicating with the server for updates for digital menu board and advertising applications.

Features

  • Intel® Atom™ CPU, 4 cores
  • Small, robust and fanless design
  • Microsoft® Windows® 10 IoT Enterprise operating system
    Android/ Windows Player Comparison
  • Support for multiple zones of content
  • Content flexibility for many multimedia file formats
    See the supported media
  • Real-time or scheduled content playback
  • Flexible screen layout options with multiple zones and layers
  • Automatic content download recovery

Specifications

System
  • CPU

    Intel® Atom™ quad core, 1.44GHz (up to 1.92GHz)

  • Chipset/GPU

    Intel® HD Graphics

  • RAM

    4GB

  • Storage

    64GB

  • Operating System

    Microsoft® Windows® 10 IoT Enterprise

  • Display Resolution

    1920 x 1080 @ 60Hz, 3840 x 2160 @ 30Hzz

  • Video Performance①

    1080P x 1 @ 12 mpbs/30fps

  • Network Interface

    10/ 100/ 1000MB BaseT LAN

I/O Ports
  • HDMI

    1

  • DisplayPort

    1

  • Audio Jack

    1

  • USB 2.0

    2

  • USB 3.0

    1

  • COM

    1

  • DC-in

    1

  • Ethernet

    RJ45 connector for Ethernet x 1

Mechanical and Environmental
  • AC/DC Adapter

    Input: 100 – 240V AC; Output: 12V DC, 3.33A

  • Fan/ Fanless

    Fanless

  • Enclosure

    Aluminum + steel

  • Dimensions (H x W x D)

    35 x 140 x 130 mm/ 1.4 x 5.5 x 5.1 in

  • Weight

    0.88 lbs/ 400 g

  • Regulatory

    FCC Class B, CE, C-Tick, UL, RoHS compliant

  • Temperature

    Operation: 0°C – 40°C; Storage: -20°C – 60°C

  • Humidity

    0% – 90% non-condensing

* Specs subject to change without notice.
①Please note that actual performance will still depend on different media content and profile.

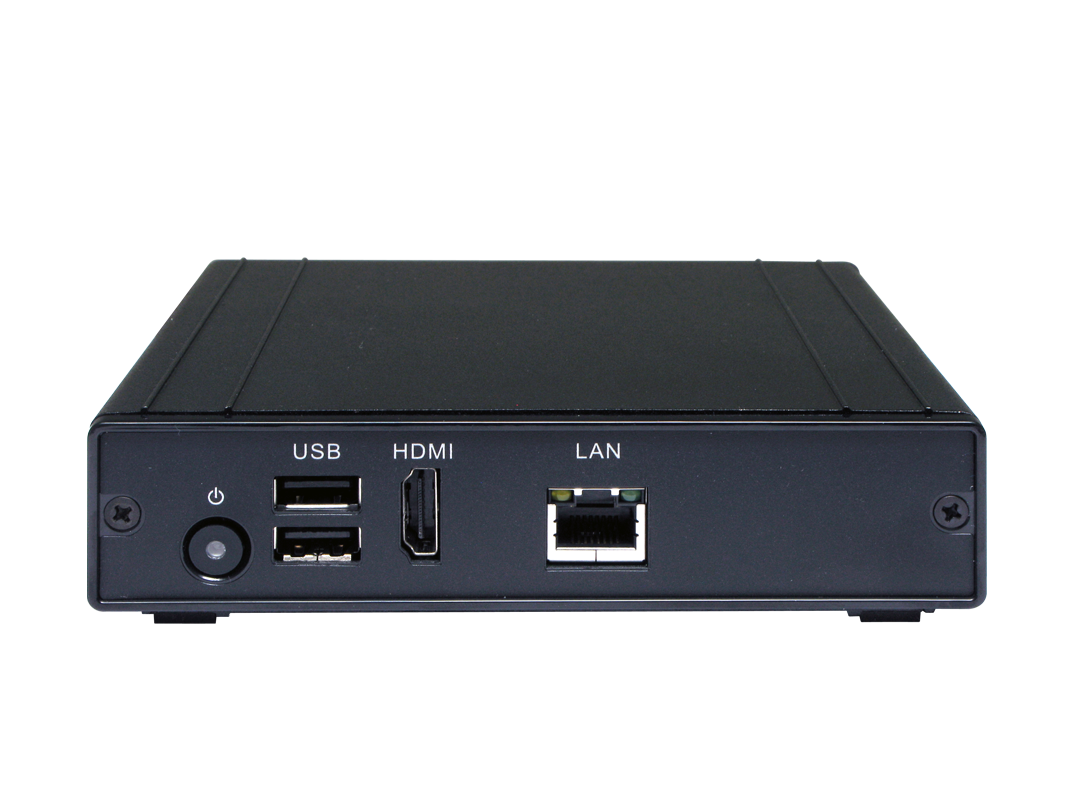

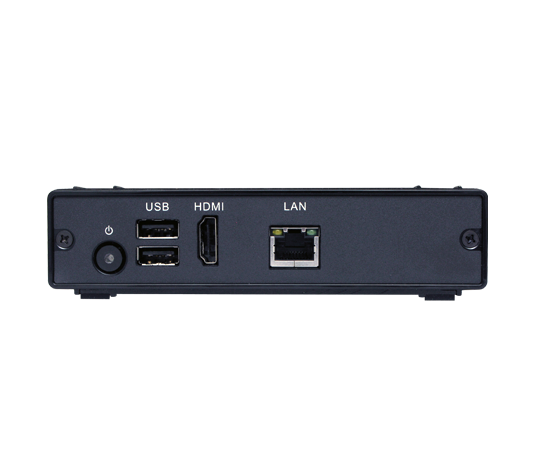

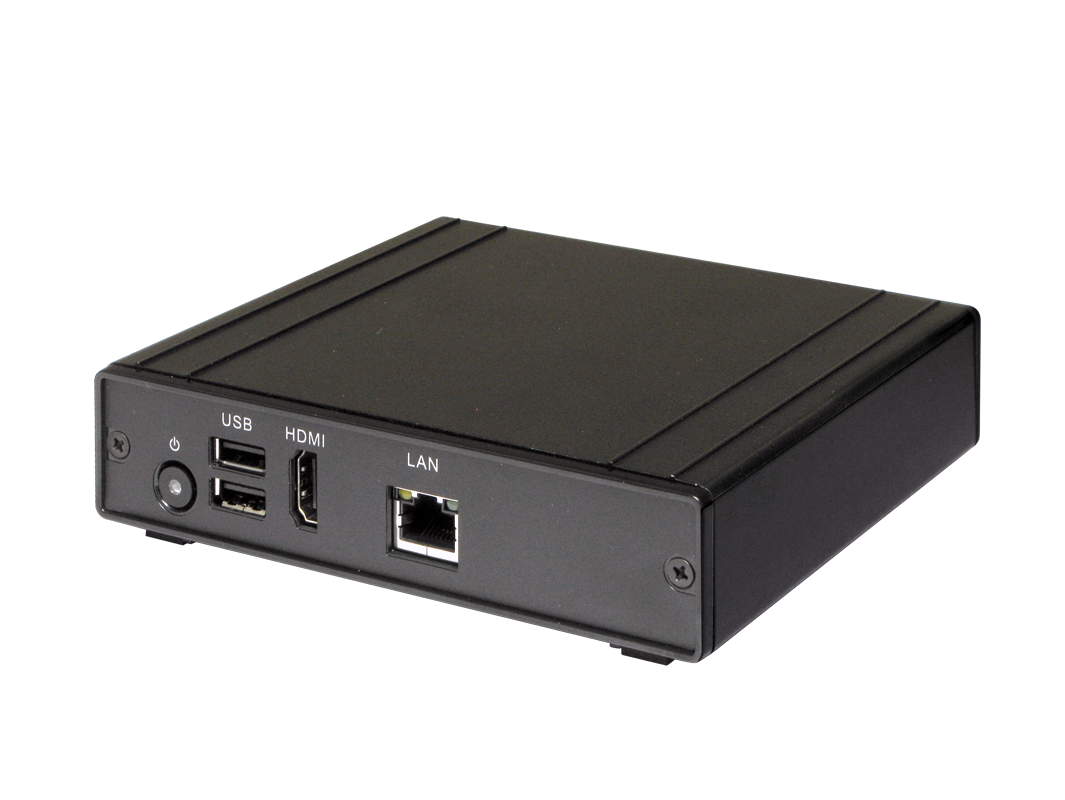

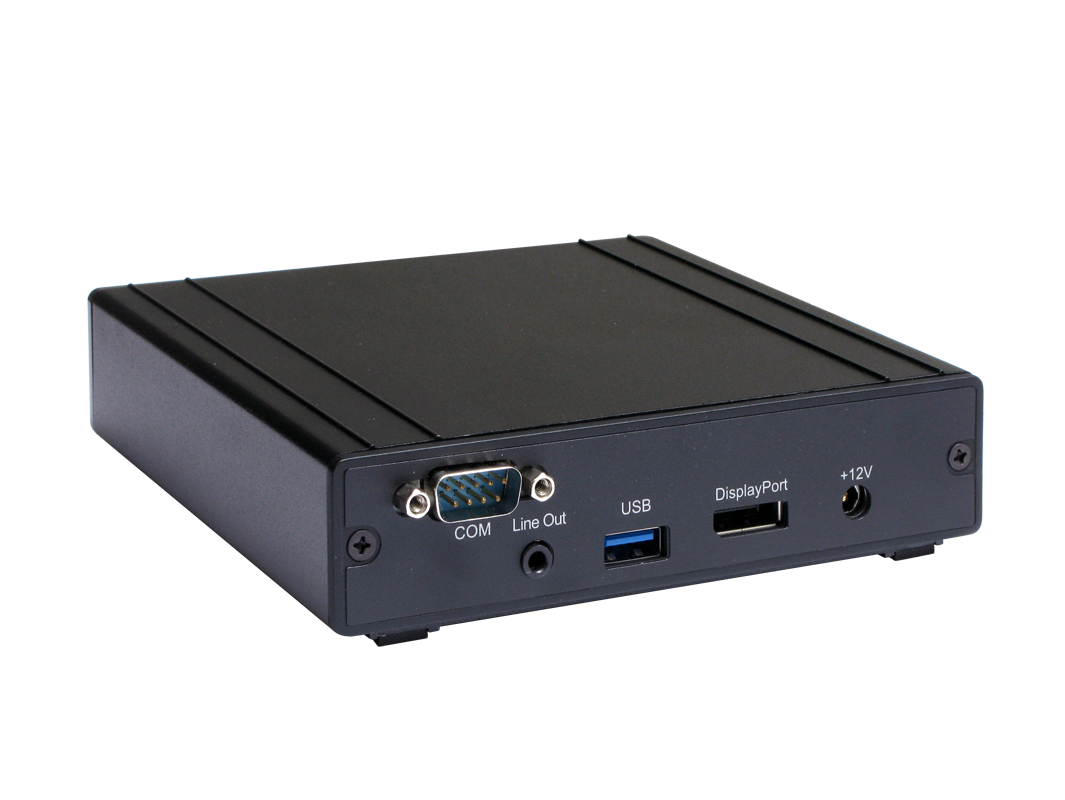

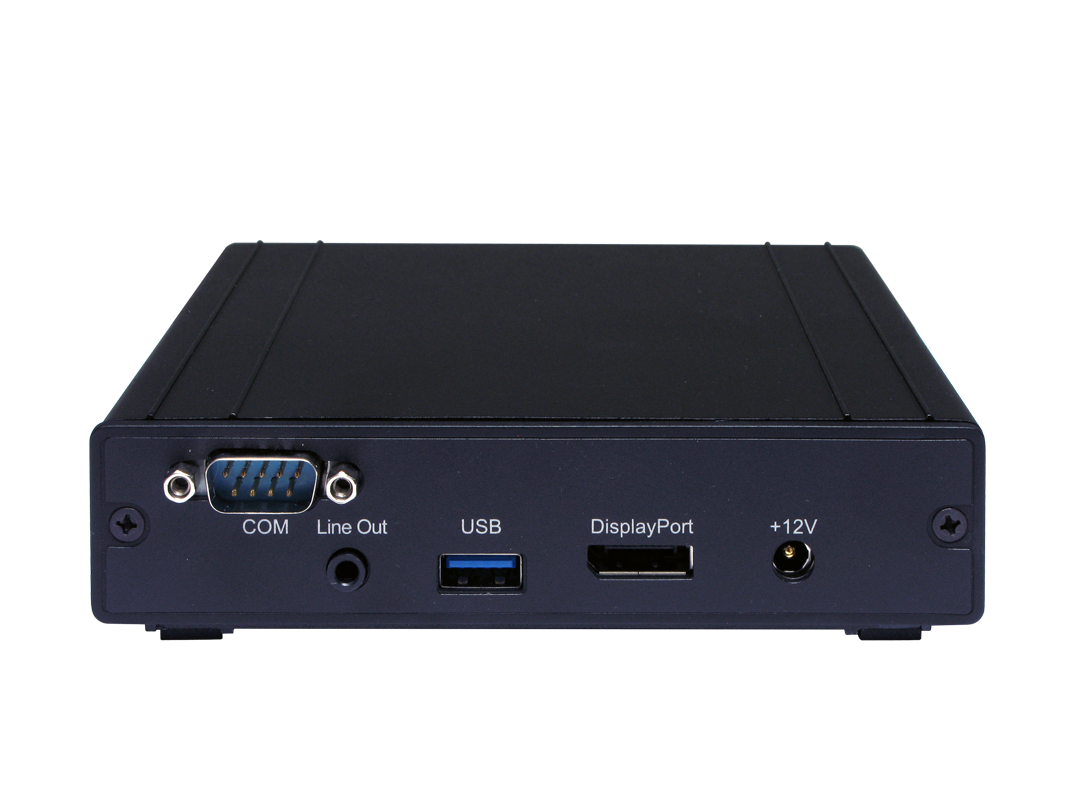

Product Pictures
