DT Research, Inc.,

MA1352GL

Power Multiple Screens for Digital Signage Arrays

Features

The DT Research MA1352GL Multi Screen Appliance features the powerful and energy-efficient Intel® Pentium® processor and integrates 3 video-out connectors for high-quality and optimal display experience. Combined with the industry-leading WebDT Content Manager and Menu Board Editor software, one MA1352GL is capable of driving content on up to 3 screens while communicating with the server for updates for digital menu board and advertising applications.

  • Intel® Pentium® CPU, 4 cores
  • Small, robust and fanless design
  • Drives up to 3 screens
  • Microsoft® Windows® 10 IoT Enterprise operating system
  • Support for multiple zones of content
  • Content flexibility for many multimedia file formats; stretched across multiple screens or played on a single screen
  • See the supported media
  • Real-time or scheduled content playback
  • Automatic content download recovery

Specifications

System

CPU
Intel® Pentium®, 4 cores
RAM
8GB
Storage
256GB flash
Operating System
Microsoft® Windows® 10 IoT Enterprise operating system
Network Interface
10/ 100/ 1000MB BaseT LAN; optional Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band
Max. Display Connection
3 screens
Display Resolution
3840 x 2160 @ 60Hz (x1)
1920x1080 @ 60Hz (x3)
Video Performance ①
1080P x 2 @12mbps/30fps;
2160P x 1 @60mbps/30fps

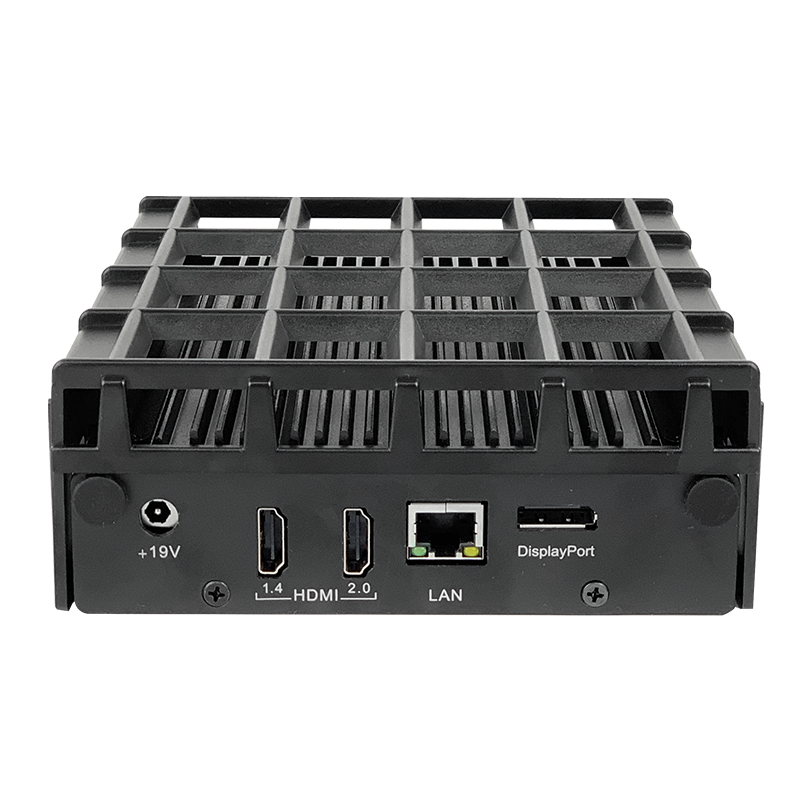

I/O Ports

Video-out
1 HDMI (1.4)
1 HDMI (2.0)
1 DisplayPort (1.2)
Ethernet
RJ45 connector for Ethernet x 1
Audio Jack
1
USB 2.0 Port
2
USB 3.0 Port
2
DC-in
1

Mechanical and Environmental

Fan/ Fanless
Fanless
AC/DC Adapter
Input: 100-240V AC; Output: 19V DC
Enclosure
Aluminum + steel
Dimensions (H x W x D)
2.16 x 5.82 x 6.5 in/ 55 x 148 x 165.1 mm
Weight
1.94 lbs/ 880 g
Temperature
Operation: 0°C – 40°C; Storage: -20°C – 60°C
Humidity
0% – 90% non-condensing

Major Option

HD Video Capture USB Stick
Video capture USB dongle with S-video/ composite inputs
* HDCP content (High-Bandwidth Digital Content Protection) not supported

* Specs subject to change without notice.
① Please note that actual performance will still depend on different media content and profile.

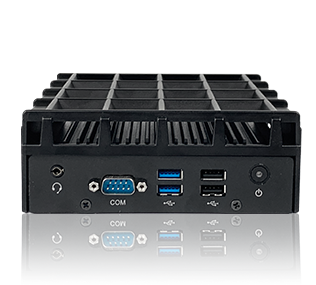

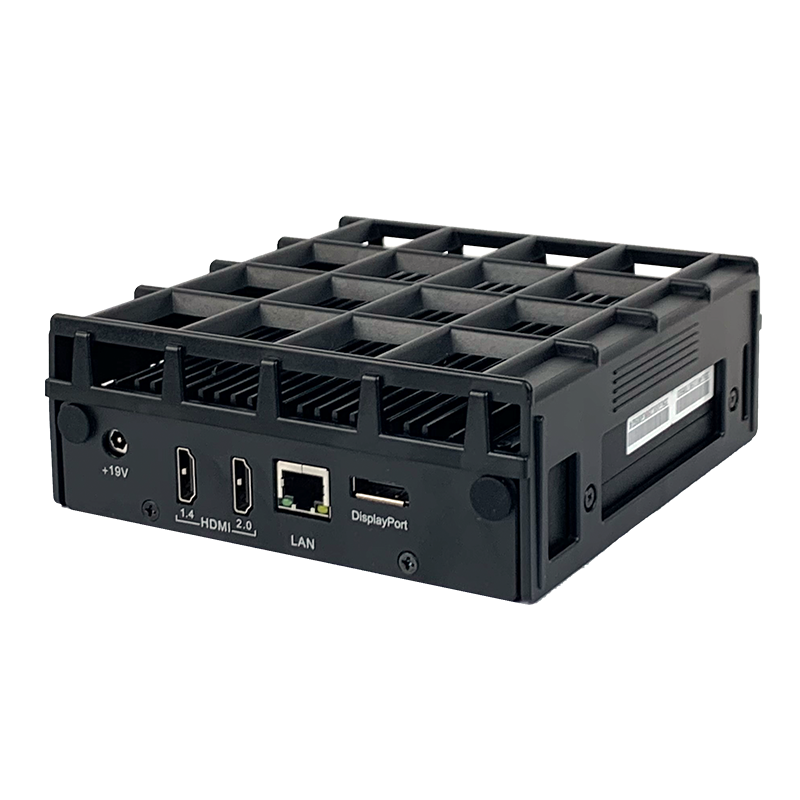

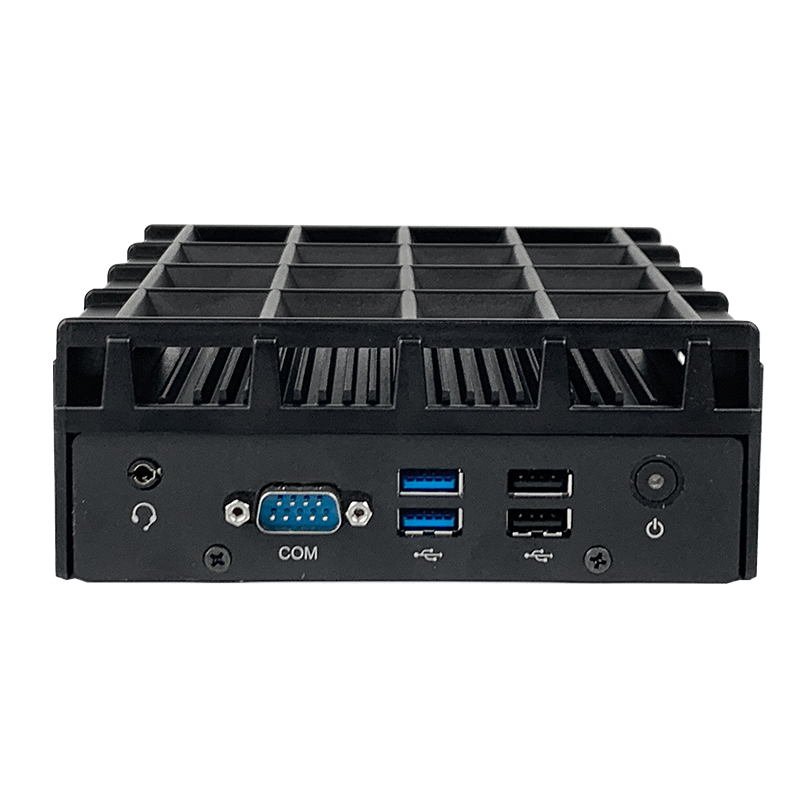

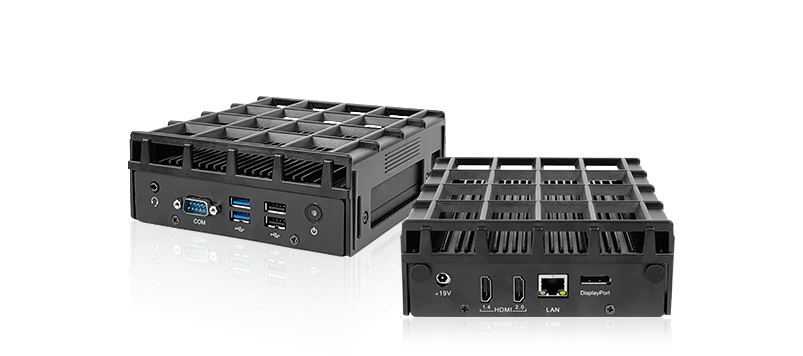

Product Pictures
