DT Research, Inc.,

SA166CR

Robust, Compact and Energy-efficient Digital Signage

Features

The DT Research SA166CR Signage Appliance features an energy-efficient Intel® Atom™ quad-core processor and Windows® operating system, as well as integrates video-out connectors for high definition display experience. Combined with the industry-leading WebDT Content Manager and Menu Board Editor software, one SA166CR is capable of driving content on the screen while communicating with the server for updates for digital menu board and advertising applications.

  • Intel® Atom™ CPU, 4 cores
  • Small, robust and fanless design
  • Microsoft® Windows® 10 IoT Enterprise operating system
  • Android/ Windows Player Comparison
  • Support for multiple zones of content
  • Content flexibility for many multimedia file formats
  • See the supported media
  • Real-time or scheduled content playback
  • Flexible screen layout options with multiple zones and layers
  • Automatic content download recovery

Specifications

System

CPU
Intel® Atom™ quad core, 1.44GHz (up to 1.92GHz)
Chipset/GPU
Intel® HD Graphics
RAM
4GB
Storage
64GB
Operating System
Microsoft® Windows® 10 IoT Enterprise operating system
Display Resolution
1920 x 1080 @ 60Hz, 3840 x 2160 @ 30Hz
Video Performance
1080P x 1 @ 12 mpbs/30fps
Network Interface
10/ 100/ 1000MB BaseT LAN

I/O Ports

HDMI
1
DisplayPort
1
Audio Jack
1
USB 2.0 Port
2
USB 3.0 Port
1
COM
1
DC-in
1
Ethernet
RJ45 connector for Ethernet x 1

Mechanical and Environmental

Fan/ Fanless
Fanless
AC/DC Adapter
Input: 100 – 240V AC; Output: 12V DC, 3.33A
Enclosure
Aluminum + steel
Dimensions (H x W x D)
1.4 x 5.5 x 5.1 in/ 35 x 140 x 130 mm
Weight
0.88 lbs/ 400 g
Regulatory
FCC Class B, CE, C-Tick, UL, RoHS compliant
Temperature
Operation: 0°C – 40°C; Storage: -20°C – 60°C
Humidity
0% – 90% non-condensing

* Specs subject to change without notice.

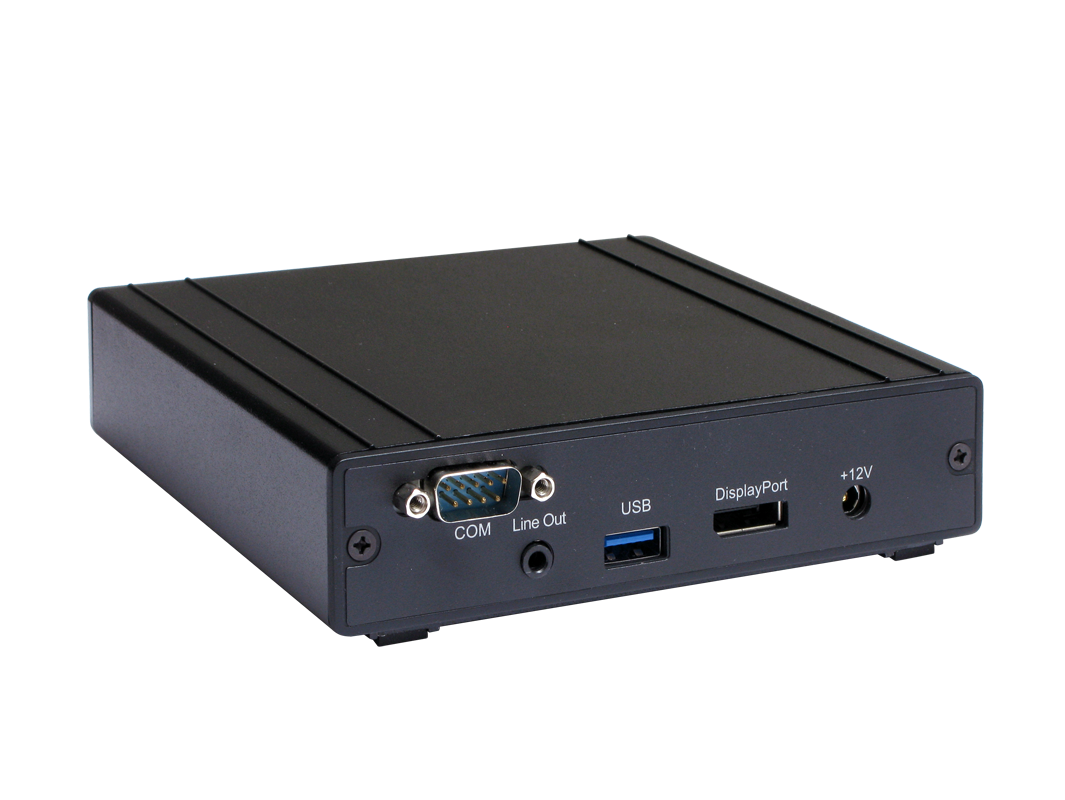

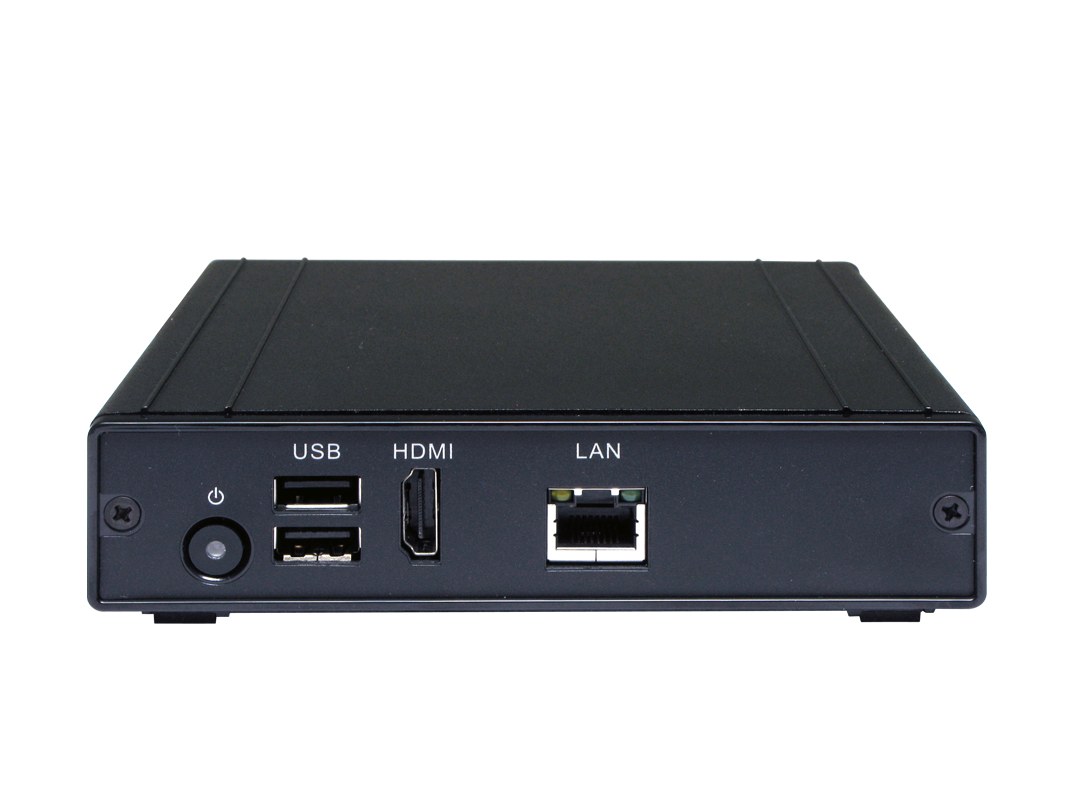

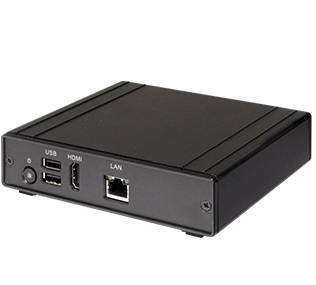

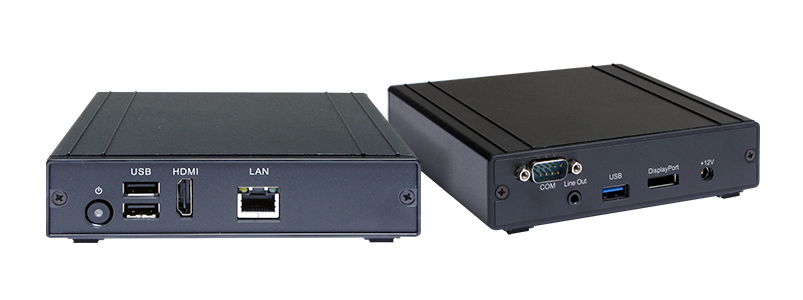

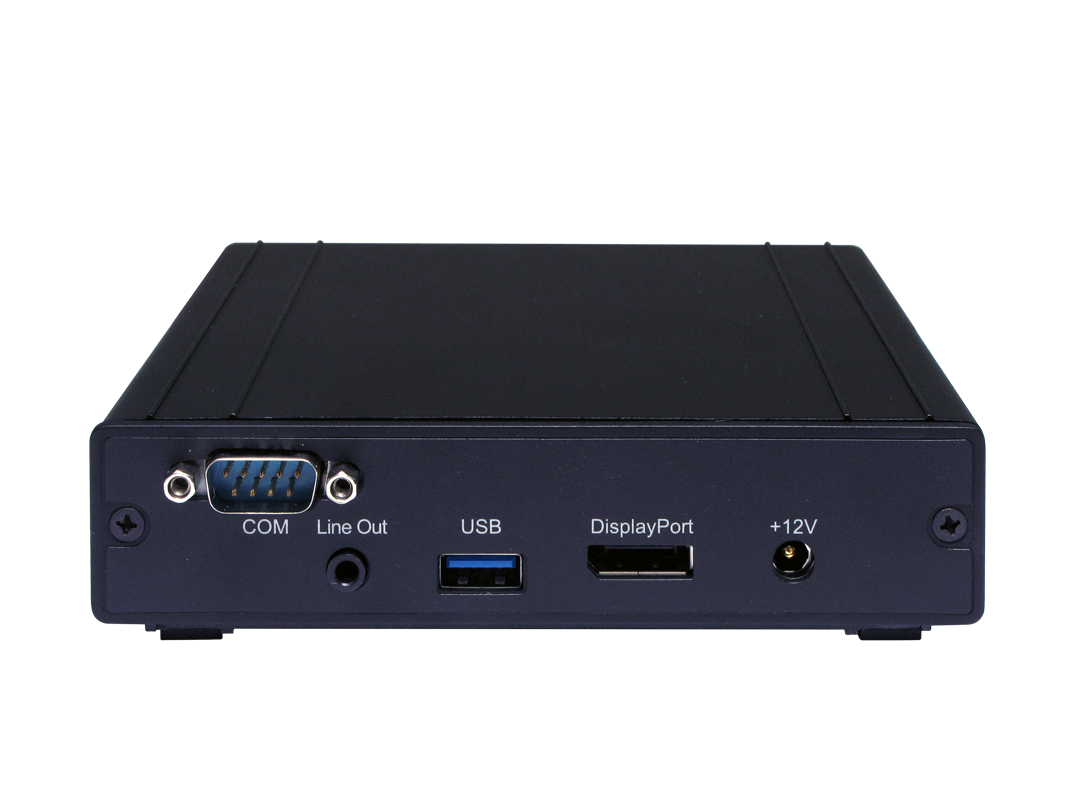

Product Pictures
