MS2800N

Power Multiple Screens for Digital Signage Arrays

Features

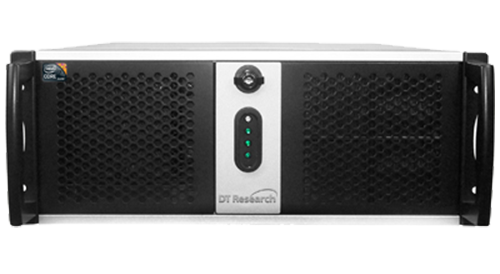

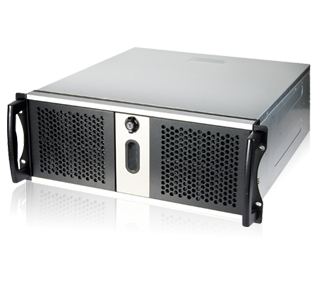

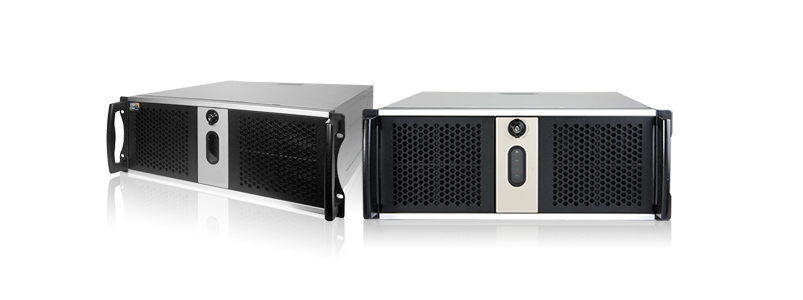

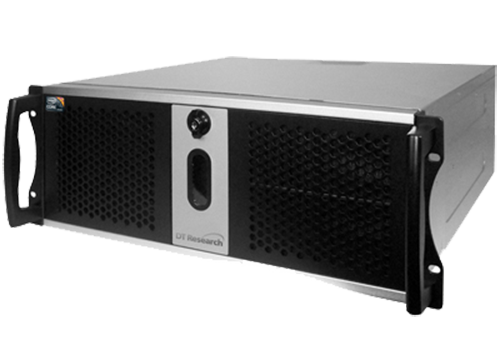

The DT Research MS2800N Multi Screen Appliance powers multiple screens for digital signage applications. Featuring the powerful and energy-efficient 10-core Intel® X-Series Core™ i9 processor, the MS2800N provides up to 16 video-out connectors for high-quality and optimal display experience. Combined with the industry-leading WebDT Content Manager software, one MS2800N is capable of driving dynamic content on up to 16 screens, while communicating with the server for continuous updates. These screens can be configured into one large video wall or they can be spread out to several separate areas. Each screen has the ability to deliver up to 1920 x 1080 (Full-HD) resolution.

Drives up to 16 screens; Full HD content supported on each screen
Support for multiple zones of content for each display wall
Content flexibility for image, flash and many multimedia file formats; stretched across multiple screens or played on a single screen
Support for numerous media formats (e.g., images, videos, Flash, URL, RSS, PowerPoint)
See the supported media

Standard Display Arrangement

Flexible Screen Layout (customization by request)

Specifications

System

CPU

Intel® X-Series Core™ i9, 10 cores

RAM

16GB

Storage

250GB to 1TB flash

Operating System

Microsoft® Windows® 10 IoT Enterprise

Network Interface

10/ 100/ 1000Mb BaseT LAN

Max.Display Connection

16 screens

Display Resolution

DisplayPort (1.4) 4096x2160 @ 60Hz (x 16)

Video Performance ①

1080P(FHD) x 16+ @12mbps/30fps; 2160P(4K) x 8+ @60mbps/30fps

I/O Ports

Display Connectors

16 mini-DisplayPort(1.4) outputs②

eSATA Port

eSATA 6.0 Gb/s port x 2

Audio Jack

3.5mm phone jack x 6/ Digital output x 1

USB Port

USB 2.0 X 2, USB 3.0 X 10

Ethernet

1 X RJ45 connector

Mechanical and Environmental

AC/DC Adapter

800W ATX

Enclosure

Aluminum + steel

Dimensions (H x W x D)

7.9 x 16.9 x 21 in/ 176 x 430 x 546 mm

Weight

36.2 lbs/ 16.42 kg

Temperature

Operation: 0°C – 40°C; Storage: -20°C – 60°C

Humidity

5% – 95% non-condensing

Major Option

HD Video Capture Box

HDMI input with HDCP support, and connect to Signage Players via USB 2.0 port

HDMI Video Capture Card

Video capture card with HDMI, component, composite and S-video inputs.
* HDCP content (High-Bandwidth Digital Content Protection) not supported.

1080P Video Capture Card

Video capture PCI-E card with HDMI 1080p, component, S-video and composite inputs
* HDCP content (High-Bandwidth Digital Content Protection) not supported.

* Specs subject to change without notice.
** Case design may differ in different markets/countries.
① Please note that actual performance will still depend on different media content and profile.
② The mini-DP to DP/ DVI/ HDMI adapters are included.
